Wall drain
Create a perfectly flawless shower interior with our wall drain. Placed at the bottom of the side wall, it allows you to fully utilise the surface and add a touch of innovation to your bathroom design.
FEATURES
- Allows a direct slope to the drip point
- Installation on the sides of the base
- Removable grate
- Strainer and hook included
- Pre-installed protective membrane
- Adjustability of the depth of the gutter rough-in according to the ceramic
- Anchoring of the gutter rough-in on adjustable legs
- Stainless steel 304
Visit INNOVATIONS section
2 easy steps :
1) Select your gutter rough-in size
2) Select the proper connection

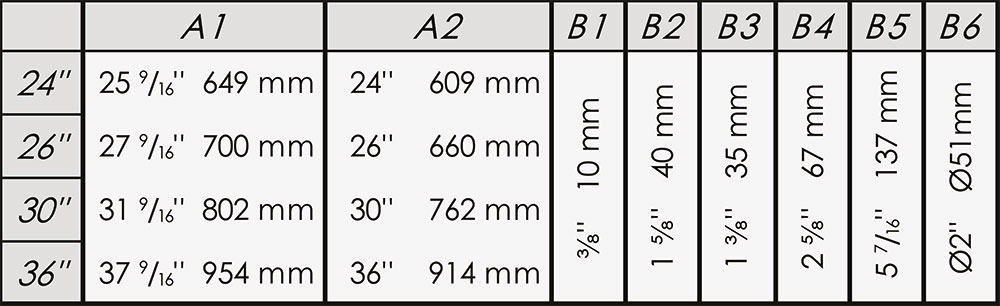

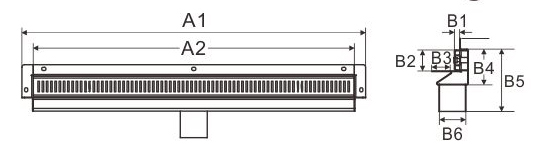

TECHNICAL DRAWING
-
- Grate and Gutter A-B
GUTTER ROUGH IN
INSTALLATION DIAGRAM
Union fitting
** Note that there must always be a membrane under the ceramic. **
Choose the union fitting when there is an access under the floor but no additional membrane.
- Joist
- Subfloor
- Wall
- Waste pipe
- Union fitting
- Gutter rough-in
- Ajustable grate support
- Shower drain grate
- Levelling feet
- Strainer
- Gypsum
- Mortar bed
- Textile membrane
- Protective drain membrane
- Cement glue
- Grout
- Ceramic tiles
