Linear drain

From simple and functional to chic and modern, our linear drains will fit any style of shower design. They are simple to install, easy to adjust and are available in 6 stylish grate designs that will blend perfectly with your shower interior.

FEATURES

Allows a direct slope to the drip point
Installation in the center or on the sides of the base
6 choices of grates
Strainer and hook included
Interior drip slope
Pre-installed protective membrane
Adjustability of the height of the grate according to the ceramic
Anchoring of the gutter rough-in on adjustable legs
Stainless steel 304

Visit INNOVATIONS section

3 easy steps :

1) Select your gutter rough-in size
2) Select your decorative grate style and size
3) Select the proper connection

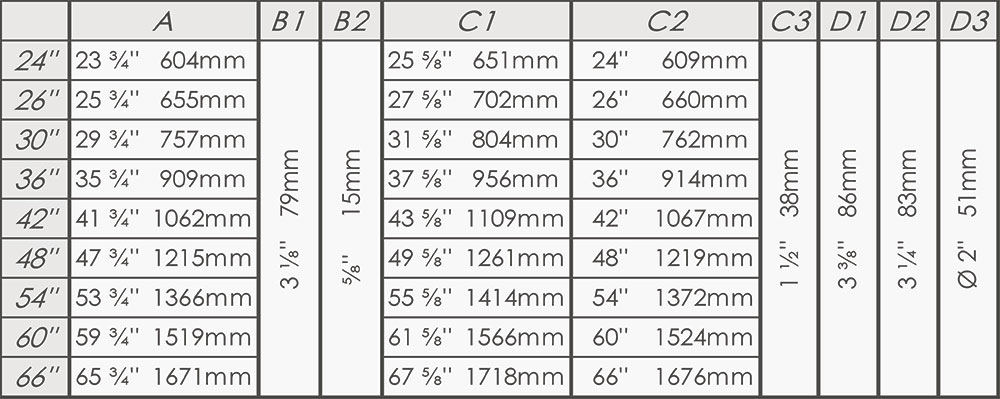

TECHNICAL DRAWING

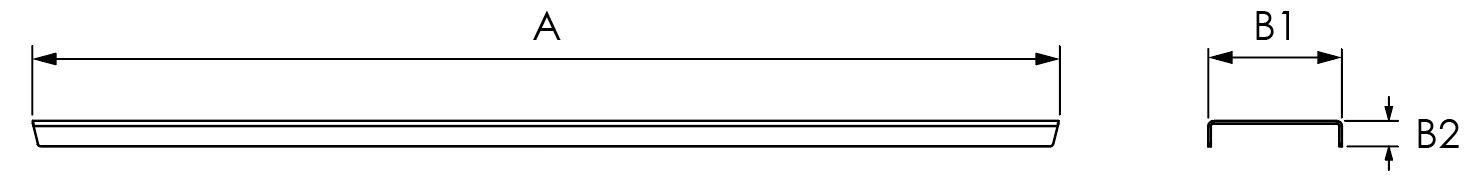

: Grate A-B

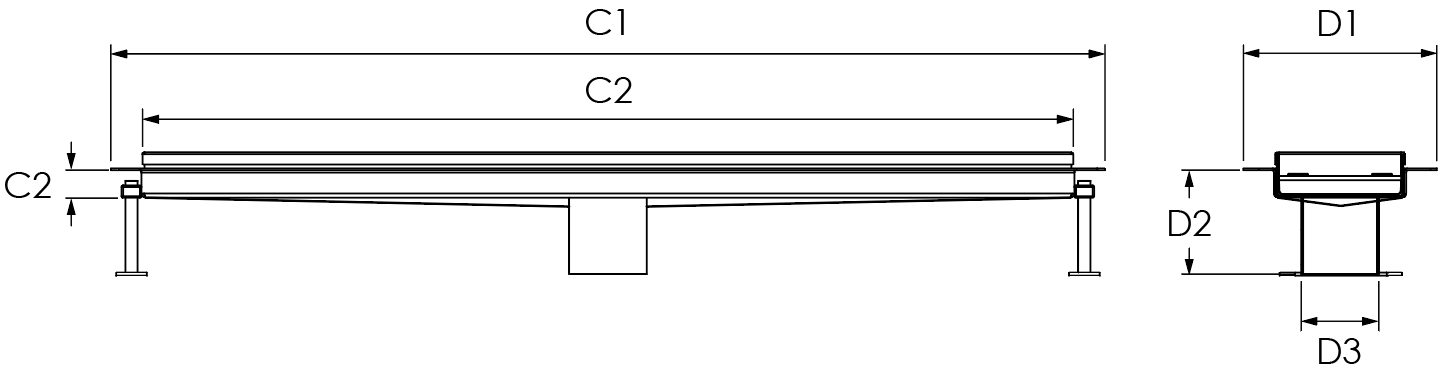

: Gutter rough-in C-D

GRATE SELECTION

GUTTER ROUGH IN

INSTALLATION DIAGRAM

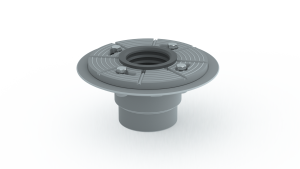

ABS membrane coupling

** Note that there must always be a membrane under the ceramic. **
Choose the ABS drain coupling when there is no access under the floor and there is an additional membrane under the mortar.

Subfloor
Wall
Subfloor membrane
Waste pipe
ABS membrane coupling
Gutter rough-in
Ajustable grate support
Shower drain grate
Levelling feet
Strainer
Gypsum
Mortar bed
Textile membrane
Protective drain membrane
Cement glue
Grout
Ceramic tiles

Select a number on image below

[

Union fitting

** Note that there must always be a membrane under the ceramic. **
Choose the union fitting when there is an access under the floor but no additional membrane.
